Características

Especificações

Inspeção de saída de vídeo: Oferecido

Relatório de teste de máquinas: Oferecido

Componentes principais: PLC, motor, rolamento, caixa de engrenagens, engrenagem

Plástico processado: PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP

Local de Origem: Jiangsu, China

brand name: DAWSON

Tensão: 440V/415V/380V/220V

dimensão (l*w*h): 4,4*3,4*3,6

Força de aperto (KN): 270

Diâmetro do parafuso (mm): 90

Produto (kg/h): 130

Automação: Automático

Nº da Zona de Aquecimento do Parafuso: 4

Potência de aquecimento do parafuso (kW): 10

Potência do motor da extrusora (kW): 30

Dimensão da placa de molde ((Largura)) ((mm)): 660

Tamanho da placa de molde (altura) (mm): 680

pressão do ar (MPA): 0,8

Consumo de ar (m³/min): 2.2

Potência de aquecimento da cabeça de matriz (kW): 8

Potência (kw): 67

Peso (T): 11.3

Principais argumentos de venda: Fácil de operar

Garantia: 1 ano

Tipo de moldagem por sopro: Máquina de molde do sopro da extrusão

Tamanho máximo de aplicação: 1L-5L

Capacidade de saída: 200 ~ 250 unidades/h

Plastificação: 70~90Kg/H

Pesar: 6.5T

Material do molde: P20, 2316, S136H, Alumínio com berílio de cobre.

Opções de linguagem: Chinês, Inglês e outras línguas conforme a necessidade do cliente

Trabalhe a procura: operetor 1~2

Serviço pós-venda fornecido: Envie o engenheiro para a fábrica do cliente.

Tipo de marketing: Produto comum

Destacar:

Automatic plastic blow molding machine 415V

Blow molding machine for cosmetics jars

Plastic jar production blow molding machine

Informação básica

Condições de Pagamento e Envio

Galeria

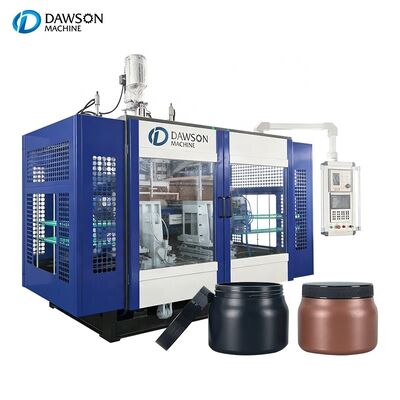

Automatic Blow Molding Machine 415V Voltage for 1L-5L Plastic Jar Production with 200~250pcs/h Output

Descrição de produto

Basic parameters	Maxvolume	1L-5L(Single head)
		Output capacity	200~250pcs/h
		Size	3.8×2.3×2.5(M)
		Weigh	6.5T

Plasticizion system	Summarize	High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
		Reducer	Material of Gear box body: HT200 Material of gear: ZG35CrMo Material of bearing: 42CrMo Heat treatment of Gear: Quenching	Brand:GUOMAO (ThebestGearbox supplierinChina)
		Screw	∮70mm,L/D ratio 25/1, Material: 38CrMoALA Nitriding heat-treatment Cooling by cooling Fan	Cooling system available
		Plasticization	70~90Kg/H	HDPE
		HeatingZone	3-4 Aluminum Heater	Automatic heating
		Heatingpower	13.5KW/H
		ExtrusionMotor	Three phasea synchronous motor (380V,50HZ)22KW	Brand: W&N
		CoolingFan	3-4zone	Automatic cooling
