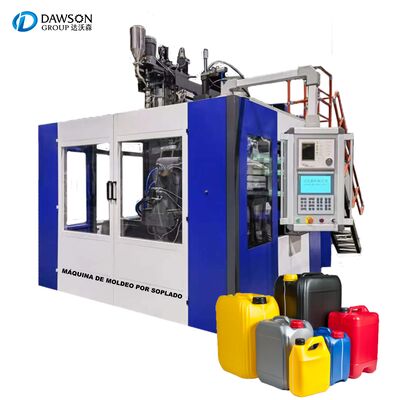

Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters

$53,500/sets 1-4 sets
preço
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Inspeção de saída de vídeo: Oferecido
Relatório de teste de máquinas: Oferecido
Componentes principais: PLC, motor, rolamento, caixa de engrenagens, engrenagem
Plástico processado: PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP
Local de origem: Jiangsu, China
brand name: DAWSON
Tensão: 440V/415V/380V/220V
Dimensão (C*L*A): 4,4*3,4*3,6
Força de aperto (KN): 270
Diâmetro do parafuso (mm): 90
Produto (kg/h): 130
Automação: automático
Nº da Zona de Aquecimento do Parafuso: 4
Potência de aquecimento do parafuso (kW): 10
Potência do motor da extrusora (kW): 30
Dimensão da placa de molde ((Largura)) ((mm)): 660
Tamanho da placa de molde (altura) (mm): 680
pressão do ar (MPA): 0,8
Consumo de ar (m³/min): 2.2
Potência de aquecimento da cabeça de matriz (kW): 8
Potência (kw): 67
Peso (t): 11.3
Principais argumentos de venda: Fácil de operar
Garantia: 1 ano
Tipo de moldagem por sopro: Máquina de molde do sopro da extrusão
Tamanho máximo de aplicação: 30L
Pressão da água de resfriamento: 0,6 MPa
Consumo de água: 100 l/min
Tempo do molde: > 1.000.000 ciclos
Material do molde: P20, 2316, S136H, Alumínio com berílio de cobre.
Opções de linguagem: Chinês, Inglês e outras línguas conforme a necessidade do cliente
Trabalhe a procura: operetor 1~2
Serviço pós-venda fornecido: Envie o engenheiro para a fábrica do cliente.
Tipo de marketing: Produto comum
Destacar:

HDPE drum Blow Molding Machine

,

Jerry Can Extrusion Blow Molding Machine

,

20 liter drum Blow Molding Machine
Informação básica
Condições de Pagamento e Envio
Descrição de produto
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 0
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 1
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 2
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 3
Basic parameters
Suitable material
PE.PP,PVC,PS,PETG,so on
Max volume
30L
Output capacity
110~120 PCS/H
Size
5.2×3.6×3.6(M)
Weight
15.3T
system
Specification
Parameters
Note
Plasticizion system
Summarize
High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer
Hard finishing、High intension、Low noise reducer
Screw
∮100mm,L/D ratio 25,150~200kg/h 38CrMoALA
45kw
Cooling system available
Heating Zone
4 Aluminum Heater
Automatic heating
Heating power
18 KW/H
Cooling Fan
Separate cooling system for heaters
Automatic cooling
Extrusion system
Summarize
High-grade alloy steel, center feeding
Die head number
1
Center distance of die heads
/
Max die mouth
200
Extruder Motor
45kw


Click here to send us messages >>Send Inquiry...

Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 4
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 5
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 6
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 7
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 8
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 9
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 10
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 11


✔ Extrusion system: Adopt world-famous brand automatic temperature ✔ controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating. ✔ Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well ✔ Blowing device: with upper blowing type ✔ Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle. ✔ Electric controlling system: Adopt programmable controller made in B&R Austria. Every electric component is of world-famous brand
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 12
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 13
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 14
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 15

DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 16
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 17
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 18
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 19
Output 130 Kg Per Hour 20 Liter Jerry Can Extrusion HDPE Moulding Plastic Drum Blow Molding Machine 4.4 By 3.4 By 3.6 Meters 20

Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .

Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
