Características

Especificações

Plástico Processado: BICHO DE ESTIMAÇÃO

Estilo: Horizontal

Distância entre Barras de Ligação (Largura) (mm): 680 mm

Distância entre Barras de Ligação (Altura) (mm): 680 mm

Plastificando a capacidade (g/s): 580

Altura do mofo ((mm): 300 - 660 milímetros

Número do ejetor: 13

Curso do ejetor (milímetros): 200 milímetros

Força de ejeção ((kN): 177kN

Volume disparado teórico (³ do cm): 1974,2 cm³

Taxa da injeção (g/s): 580g/s

Tipo de máquina: Hidráulico

Peso de injecção (g): 2369g

Velocidade do parafuso (rpm): 1 - 180 rpm

Diâmetro do parafuso (mm): 83 milímetros

Relação L/D do parafuso: 21

Distância entre as barras de ligação: 680x680 mm

Peso (KG): 12100 quilogramas

Local de Origem: Jiangsu, China

Curso aberto (mm): 590 mm

Número do modelo: HPET2300/328S7

brand name: DAWSON

Potência (kW): 131,4 kW

Garantia: 1 ano

principais pontos de venda: Alta Produtividade

Relatório de teste de máquinas: Oferecido

Inspeção de saída de vídeo: Oferecido

Componentes principais: Acessórios, motores, bombas, engrenagens, PLC, outros, recipientes sob pressão, motores, caixas de e

Classificação das máquinas de moldagem por injecção: Máquina de moldagem por injecção para fabricação de preformas de PET

Pressão de injeção: 160 Mpa

Espessura do Molde: 280-710 mm

Tonelagem do ejetor: 3280KN

Número do ejetor: 13 peças

diâmetro do furo: 160MM

Pressão máxima da bomba: 16 MPa

Dimensão da Máquina: 7.8*1.7*2.05m

Peso da máquina: 13.8 t

Capacidade do tanque de óleo: 500 litros

Doença: Novo

Tipo: máquina de moldagem por injeção

Indústrias Aplicáveis: Planta de fabricação, fábrica de alimentos e bebidas

Localização do showroom: Filipinas

Garantia dos componentes principais: 1 ano

Destacar:

1 to 180 rpm Screw Speed PET Preform Injection Molding Machine

200 Ton Clamping Force PET Preform Injection Molding Machine

Energy Saving Servo Motor PET Preform Injection Molding Machine

Informação básica

Condições de Pagamento e Envio

Detalhes da embalagem: A máquina de moldagem por sopro é embalada com filme plástico; máquinas auxiliares e peças de reposi

Habilidade da fonte: 20 peças/peças por mês

Galeria

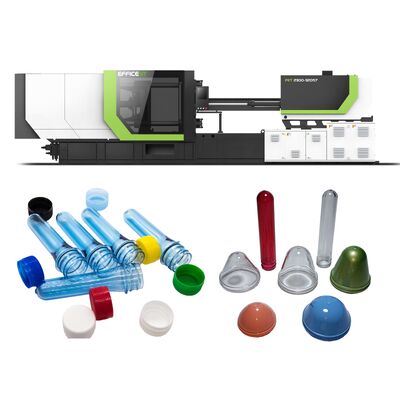

PET Preform Injection Molding Machine with 1 to 180 rpm Screw Speed 200 Ton Clamping Force and Energy Saving Servo Motor

Descrição de produto

Products Description

DAWSON MACHINERY & MOULD GROUP

Injection Molding Machine

specialized for making PET preforms , caps , pails, buckets, jars, covers, lids. Special screw for PET products, all machine adapt latest Taiwan control system, Japan YUKEN hydraulic valve for highest quality standard and machine performance. We also able to provide mould designing and manufacturing to help you build up all kinds of plastic items manufacturing.

Technical Parameters

Parameters			HPET1500/288S7	HPET1500/328S7	HPET2300/328S7	HPET3100/328S7
Screw diameter	mm	75	75	83	95
Theoretical shot volume	cm3	1262	1262	1974	2585
Shot weight	gram	1515	1515	2369	3103
Clamping force	KN	2880	3280	3280	3280
Toggle stroke	mm	520	590	590	590
Ejector stroke	mm	180	200	200	200
Space between tie bars	mm	630*600	680*680	680*680	680*680
Mould thickness	mm	300~600	300~660	300~660	300~660
Machine size	m	6.81.62.1	7.21.72.05	7.21.72.05	7.21.72.05
Machine weight	ton	8.7	11.8	12.1	12.3

Standard Feature

Injection Molding Machine Standard Feature

CLAMPING UNIT

1. New type 5-point toggle device with the advantage of stable movement curve and gentle shock
2. High-quality mold platen with enough intensity to ensure no out of shape if high-pressure clamping
3. Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance
ability
4. Wear-resistant guide for moving platen
5. Transducer control clamping stroke
6. Many step controls for speed and pressure of clamping and opening
7. Ejection device offer dwell, single, more, vibration function
8. Differential high-speed clamping
9. Low pressure mold protection function
10. Hydraulic mold height adjustment derived by gear with rough and fine operation
11. Mechanical and electrical dual safety interlock
12. Automatic centralized lubrication system with far pressure detector

HYDRAULIC UNIT

1. Proportional pressure and flow control with the advantage of fine adjustment and high precision
2. Know-how manifold design, compact, reasonable and fast respond
3. Imported world famous hydraulic valves
4. Imported world famous hydraulic sealing rings
5. Import technology hydraulic hose and fittings
6. Low noise hydraulic system
7. Oil tank with inner stainless-steel container
8. Precision oil filter
9. Oil cooler

CONTROL UNIT

1. 1. The computer is imported from Industry family. The LCD displaying screen with high clarity has Chinese and English
language to display
2. World famous electrical components
3. Close-loop PID temperature control with the advantage of high precision.
4. Deviation preset between high and low temperature. And break control for temperature sensor.
5. Alarming system in case of cold start and no material in hopper
6. Transducer control the injection and opening stroke to accuracy of ±0.05mm
7. 99 steps speed control for increasing and reducing to suit for different technology demands
8. Self-diagnostic and trouble alarm function
9. Parameters lock function to avoid being changed
10. 100 sets of production parameters can be stored into the computer memorial software
11. Machine can record the quantity of products and automatically stop if up to the required quantity.
12. Emergency stop device
13. Alarm lamp

SPARE PARTS

█ Operation Manual █ Normal hopper
█ Level pad █ Heater band █ Mold clip

Details Images

Oil-electric hybrid high-speed preform injection molding machine.Special injection molding machine for fast preform.The whole machine adopts the design style of European style, and the appearance is beautiful and high-end.

The safety door glass is made of PC board material, which has good strength and high transparency, while most of the injection molding machines in the same industry use acrylic board, which has poor strength, vulnerable parts, and poor transparency.

The blanking plate is heightened with two water pipe perforations, which is convenient for connecting the water inlet and outlet pipes

of the mould.

For models above 320 tons, the base of the pallet is lengthened to allow the weight of the reducer to be distributed on the base.

Otherwise, the reducer of a large preform machine is heavy and the weight is distributed on the drive shaft, which is easy to
deform and break. (Exclusive design of EFFICENT type）

The solid state relay is used, which has a long service life, while most injection molding machines use thermal contactors, which are

easily damaged due to the high frequency of opening and closing.

The casting of the direct injection table is specially set at two supporting points to prevent the molten glue servo motor from

sinking due to its own weight, which will cause the drive shaft connecting the motor and the reducer to break. (Exclusive design
of EFFICENT type)

The surface of the injection machine frame is sprayed with patterned iron plate, while the domestic injection molding machine uses

patterned aluminum plate, which avoids the high-temperature hot material when starting and stopping, and the cleaning material is
easy to deform and warp when it falls on the patterned aluminum plate, and the patterned iron plate has strong high temperature
resistance , to circumvent this problem.

The double-injection structure is adopted to ensure the stability of the forward and backward movements of the injection platform.

The standard high-quality ceramic heating ring has good heat preservation effect, avoids large temperature deviation from affecting
the PET bottle preform molding process, and has a long service life.

Between the safety door sheet metal and the pc transparent board, a special UV process is used, and a black frame is added around
it to increase the overall aesthetics. (Exclusive design of EFFICENT type)

Because PET preforms are formed, the screw is long and the torque is large, and the tail of the screw is prone to twisting (the

probability of breaking is high in the same industry), so the special design of the screw tail of EFFICENT has a longer and

thicker structure to avoid the problem of twisting of the screw tail.

Each oil plate of Ifite is treated with plating process, and the surface finish is good, while most of the injection molding machine
industry adopts simple painting method, which is low-grade and unsightly.

The oil pipe and the oil plate are all connected by high-precision G thread method, which has high precision and avoids the problem of

oil leakage. However, most of the same industry use raw tape straight thread, because the use of raw tape to enhance the sealing
method is easy to cause accidents. Oil leakage caused by the degree of looseness caused by the personal factors of the assembly workers, and the white raw tape is exposed and unsightly.

Using a specially customized high-torque motor for PET, the motor model of the screw of the same type of EFFICENT type is one or two larger than that of the same industry, ensuring sufficient torque and melting speed. And it ensures lower melt pressure and
prolongs the service life of the motor, while the frequency of motor damage due to excessive melt pressure in the same industry is very high.

The material cleaning port is specially designed under the front plate of the clamping structure, which is very convenient for
material cleaning. (Exclusive design of EFFICENT type)

The opening and closing molds, thimbles, glue injection, and electronic rulers all use imported top brand German NOVO to ensure the control accuracy of each operation, while 90% of the manufacturers in the same industry use domestic electronic rulers with international brands.

The opening and closing molds go to the oil passage, the inlet and outlet oil pipes, the oil plate and the valve diameter are one or two grades larger than those in the same industry, ensuring sufficient mold opening and closing speed, and the opening and closing speed is 40%~60% faster than the same model in the same industry

The mold opening and closing operation of 320 tons and above models is equipped with servo proportional valve structure as standard,
with fast mold opening and closing speed and high repeatability, while the injection molding machines in the same industry all
adopt directional valve structure, slow mold opening and closing speed, large position deviation, proportional valve The cost is
more than 12,000 yuan, while the directional valve is only more than 900

The injection platform adopts a dual linear guide rail structure with zero resistance, which ensures a faster injection speed, while the traditional injection molding machine adopts a guide rod structure, which has high resistance and slow injection.

The oil tank is specially designed, narrow inside and wide outside, avoiding the preform falling into the oil tank during the free fall process, rebounding to the lower hopper after sticking to the oil, and making the whole preform into waste after mixing with other clean preforms. (Exclusive design of EFFICENT type)

Using high-speed preform machine with high rigidity speed, the mold opening and closing speed is 40%~60% faster than that of preform

machines in the same industry (taking 320 tons as an example, the mold opening and closing cycle in the same industry is 3.5~4.1
seconds, and EFFICENT type only needs 2.0~ 2.3 seconds).

The base of the injection platform adopts three-point positioning on one side to fully ensure the stability of the base. All models in
the same industry adopt two-point positioning on one side.

There are many nozzle aperture specifications, including 5.5mm, 8mm, 10mm, 12mm, 16mm, and 20mm, but the assembly dimensions of the tail of the nozzle are all common, which is convenient for customers.
